Fluorinated solvent system Particle removing system

Fluorinated solvent has low surface tension and could penetrate into the tiny gap and thoroughly remove particles.
Featuring outstanding material compatibility, quick drying and small foot print. This system can also use as a substitution drying system of alcohol (IPA, Ethanol).

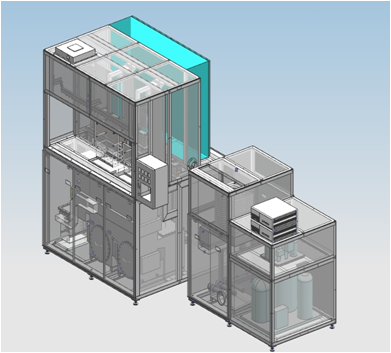

Particle removing system image

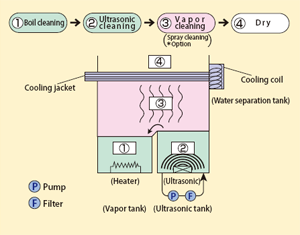

Particle removing system flow chart

Application

C-MOS sensor, Optical lens, Optical fiber, LCD parts, Quartz crystal units, Magnetic head, HDD parts, Relay parts, Plastic parts before coating, Camera module units, Ceramic package and etc.

Installed Equipment

1,Particle Removing Machine

Purpose Particle removing
Cleaning agent Fluorinated solvent (mixed type)
Configuration Cooling unit
Cleaning tank (with ultrasonic and filtration)
Solvent recycling tank
Solvent recovery unit

*Low solvent consumption by our unique cooling coil system

Particle Removing Machine image

2,Sealed Cleaning Tank Machine

Purpose Particle removing (plastic parts)
Cleaning agent Fluorinated solvent
Configuration Cooling unit
Cleaning tank (with ultrasonic and filtration)
Solvent recycling tank
Solvent storage tank

*Low solvent consumption without vacuum pump and gas collecting unit.

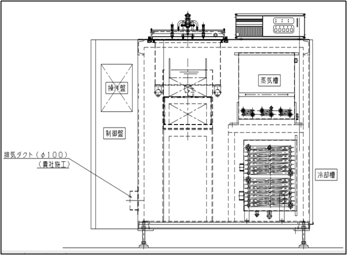

Sealed Cleaning Tank Machine image

3,Automatic Cleaning Machine (built-in solvent collecting unit)

Purpose Particle removing (sensor substrate)
Solvent Fluorinated solvent
Configuration Cooling unit
Cleaning tank (with ultrasonic, Soryu flow filtration and water density control)
Solvent recycling tank
Built-in solvent collecting unit

  1. Low solvent consumption by our unique cooling coil system
  2. Continuous automatic basket transfer system
  3. Prevent the solvent loss of basket transfer by built-in solvent collecting unit
  4. High precision cleaning system

Automatic Cleaning Machine (built-in solvent collecting unit) image

Space saving series F (Model F-110)

Space saving series F image

Particle removing system flow chart

Features

  • Suitable for trial and laboratory purpose
  • Designed to run all of fluorinated solvents
  • Compact design (carryable)
  • Ultrasonic and vapor cleaning
  • Solvent recycle with built-in distillation unit

*Can be used for alternative organic type solvents

Application

  • Particle removing and drying
  • Spot free drying (DI water)
  • Spot free drying (IPA)

*There is limitation
